HomePower MobilityJazzy Elite ES

Jazzy Elite ES

Jazzy Elite ES

Call For Pricing

Insurance Application

The Jazzy® Elite ES delivers a reliable blend of power, performance and style for your active lifestyle.

  • In-line, front-wheel drive technology
  • 40 amp, PG GC 3 controller
  • Simple main frame design for easy serviceability
  • Comfort high-back seat with headrest
  • Jazzy® Armor® controller guard to protect from daily wear and tear
  • Basic Jazzy Armor shroud decals
  • FDA Class II Medical Device*



This product is currently out of stock and unavailable.

Add to wishlist
SKU: N/A Category: Tags: ,

With superb climbing capabilities combined with front anti-tip wheels for transitioning over grade changes easily, the Jazzy Elite ES handles various terrains with ease. The in-line, front-wheel drive technology provides tight turns around corners for optimal indoor maneuverability in small spaces and large front wheels for extra absorption over obstacles.

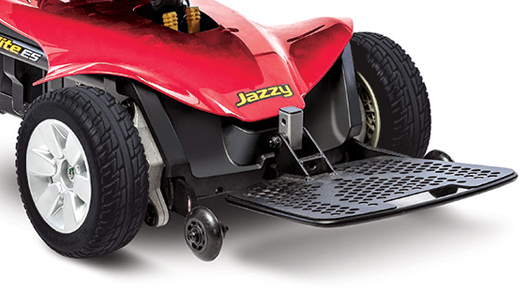

Front-Wheel Drive

Technology designed for excellent maneuverability indoors

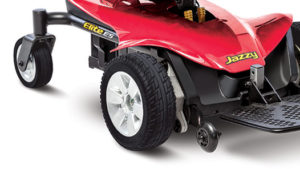

Simple Frame Design

Simple frame design for reliability and ease of service

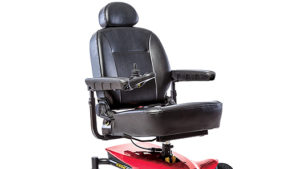

Comfort Seat

Depth adjustable, black vinyl high-back seat with removable, replaceable back and seat covers

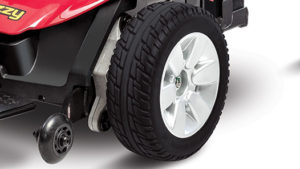

Non-Marking Tires

Black, flat-free non-marking tires

*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments

Model
Jazzy Elite ES
Weight Capacity 300 lbs.
Turning Radius1 24.75″
Width1 22.75″
Length1,2 34.75″
Maximum Speed3 Up to 4 mph
Ground Clearance1 1.5″
Front Wheels 3″ solid anti-tips
Drive Wheels 9″ solid
Rear Wheels 6″ solid casters
Drivetrain Two-motor, in-line, front-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Limited
High-Back Seat (max. size) 20″W x 20″D
High-Back Seat-to-Floor Range 21.5″ – 23.5″
Standard Electronics 40A, PG GC3
Battery Size (2 required) 12 volt, U-1
Standard Battery Charger 3A, off-board
Per-Charge Range3,6 Up to 15 miles
Battery Weight5 24.5 lbs. each
Weight of Heaviest Piece4 68.5 lbs.
Standard Seat Weight 43 lbs. (comfort, high-back)
Standard Seat Size 18″ x 18″-20″
Medicare Code Coverage Group 2: Standard, Portable (K0822/K0823)
Warranty 5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.

Additional information

Weight 69 lbs
Dimensions 34.75 × 22.75 × 22.5 in
color

Blue, Red
