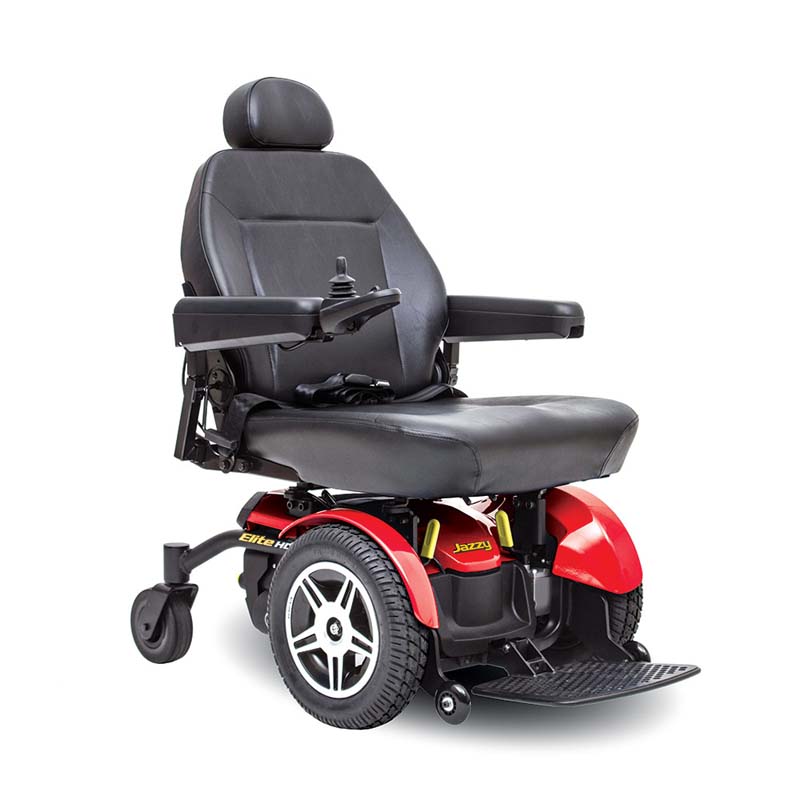

Jazzy Elite HD

$3,909.00

The Jazzy® Elite HD features two-motor, front-wheel drive technology and heavy-duty construction.

  • Enhanced 450 lbs. weight capacity
  • Front-wheel drive design for excellent maneuverability
  • 14″ knobby tires and optimum weight distribution for superior traction
  • Larger foot platform
  • 60 amp controller
  • Extended 13-month limited warranty

Apply Using Insurance:

Insurance Application


Buy Now:

Add to wishlist
Category: Tags: , ,

The Jazzy Elite HD features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns for optimal indoor maneuverability in small spaces. Large front wheels add extra absorption for superb climbing capabilities and combine with front antitip wheels for handling various terrains with ease.

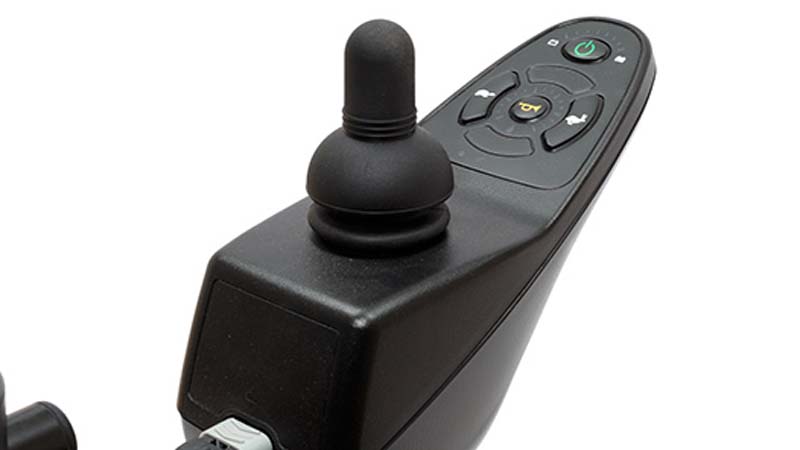

Performance – Matched Controls

60 amp controller and intuitive hand control / electronics

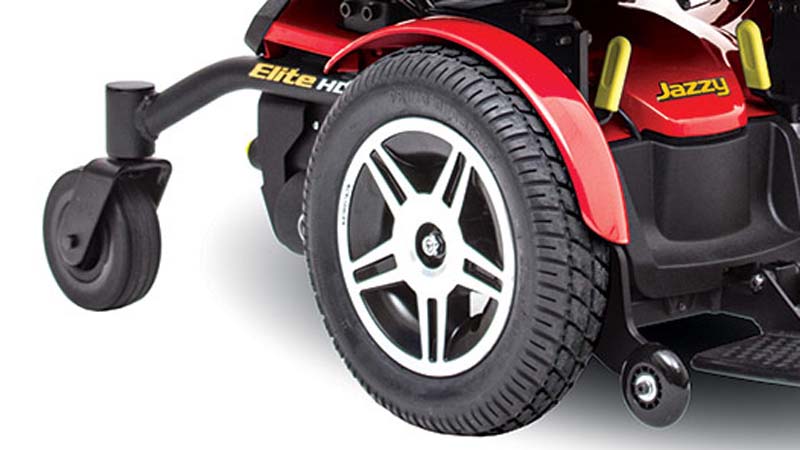

Versatile Performance

Large drive wheels for traction on varied surfaces

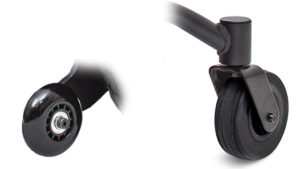

Indoor Maneuverability

Compact casters for superior maneuverability

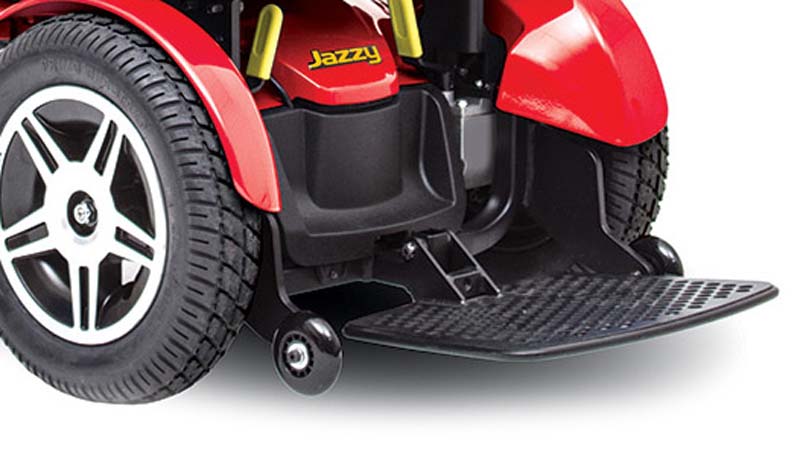

Large Foot Platform

Expansive foot room for comfort and security

Model
Jazzy Elite HD
Weight Capacity 450 lbs.5
Turning Radius1 24″
Width1 24.25″
Length1,2 35.5″
Maximum Speed3 Up to 4 mph
Ground Clearance1 3″
Front Wheels 3″ solid anti-tips
Drive Wheels 14″ solid
Rear Wheels 6″ Solid casters
Drivetrain Two-motor, front-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Limited
High-Back Seat (max. size) 24″W x 24″D
High-Back Seat-to-Floor Range 20″ – 22″
Synergy® Seating 24″W x 24″D
Synergy® Seat-to-Floor Range 15.75″ – 17.75″
Standard Electronics 60A, Dynamic Shark
Battery Size (2 required) 12 volt, NF-22
Standard Battery Charger 5A, off-board
Per-Charge Range3,7 Up to 9.8 miles
Battery Weight6 37 lbs. each
Weight of Heaviest Piece4 98.5 lbs.
Standard Seat Weight 51.5 lbs. (high-back)
Standard Seat Size 20″ x 18″-20″
Medicare Code Coverage Group 2: Heavy Duty (K0824/K0825)
Warranty 5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Maximum weight capacity is reduced to 400 lbs. (181 kg) on 18″ deep seat configurations.
6 Battery weight may vary based on manufacturer.
7 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.

Additional information

color

Blue, Red
